ADDITIONALEQUIPMENT > INDUSTRIAL FURNACE DIVISION

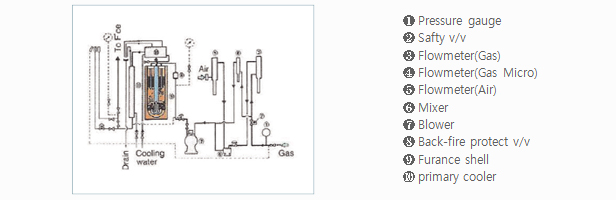

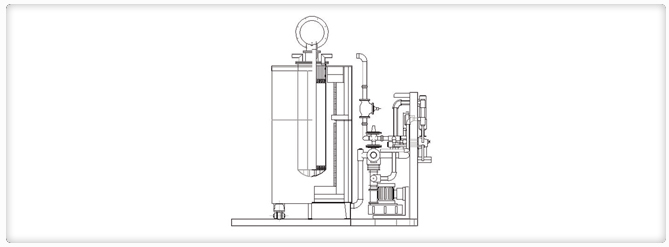

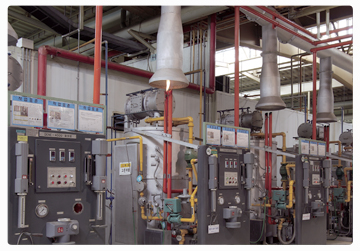

Endothermic RX gas generator with unique smoke-protecting mechanism has earned many good reviews in various fields.
To generate stable gas, this generator is equipped with double-pass retort, special heating device and pulseless blower.

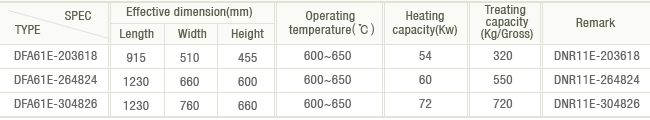

Standard specifications of furnace

FEATURE

Generating operation Gas for Carburizing,

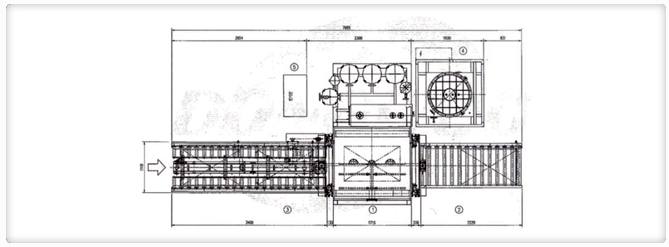

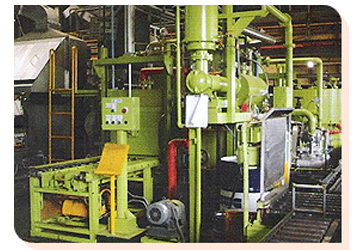

Uses alkaline solution to clean cutting or quenching oil contamination in the pre- and post-process of heat treating. Two-step cleaning operation (dip and spray) with separated tank (alkaline and warm water), followed by de-oiler.

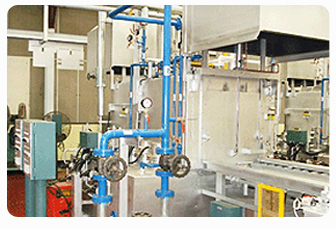

Cleans salt from the work piece after salt quenching. Two-step cleaning with warm water and 70-degree C water in separated tank (dip and spray) to ensure cleanliness of the product.

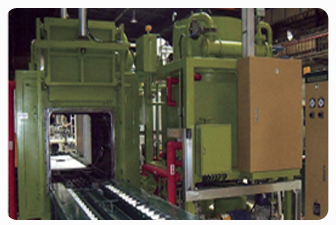

Pre and post cleaning for heat treating line. Excellent cleanliness guaranteed after low-pressure cleaning and drying. Low-temperature tempering is optional.

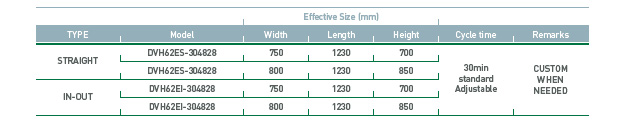

Standard specifications of furnace

Operating specification

+ Cleaning solution tank : 600L
+ Recycle tank : 100L
+ Wasted solution tank : 100L
+ Heat transfer oil : 1000L
+ Vacuum pump capacity
- - Cleaner chamber : 3.7m^3/min
- - Recycle chamber : 1.0m^3/min
+ Total electricity : 107kw
+ Solvent : Paraffin, hydrocarbon or naphthene

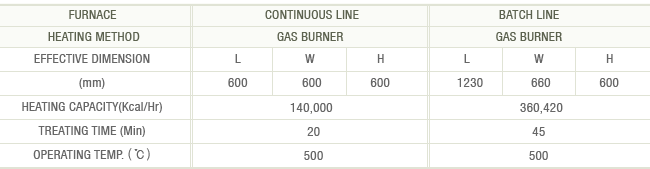

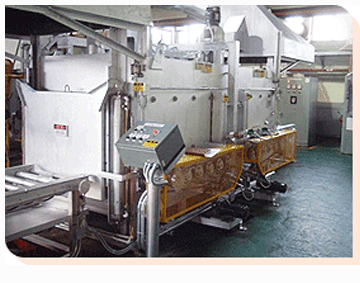

Low temperature, high temperature and low and high temperature tempering furnace depending on the target temperature. Stirring fan and special muffles are used for better heat distribution.

Standard specifications of semi continuous batch type furnace
